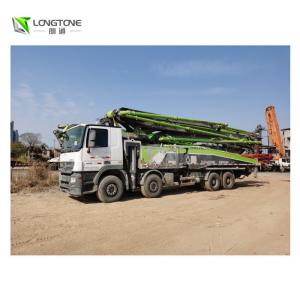

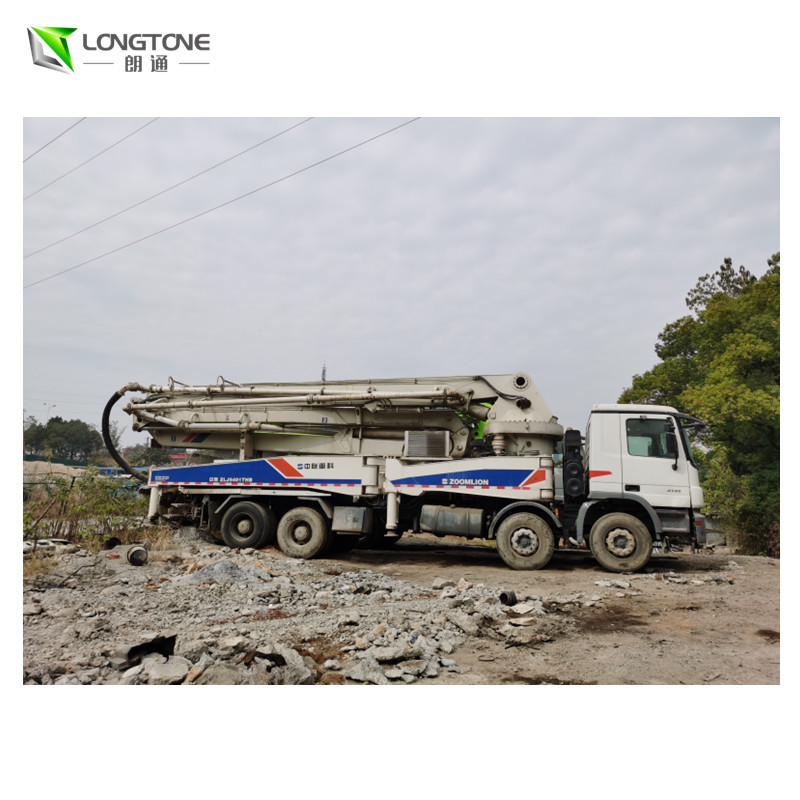

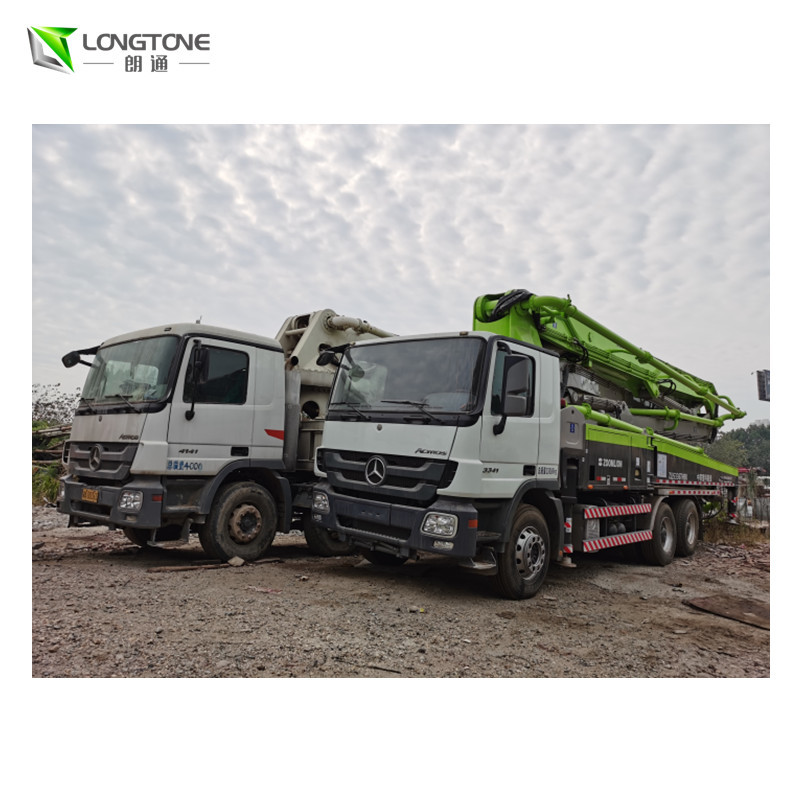

Zoomlion 37m Truck Mounted Pumps Concrete Pump Truck For Sale
| Model | ZLJ5230THBTE 37X-5RZ |
| Pumping system | Maximum theoretical delivery (m3/h) | 100/60 |
| Concrete maximum outlet pressure (MPa) | 8/15 |
| Fixed work stress (MPa) | 35 |
| Pumping frequency (min-1) | 25/14 |
| Hopper volume (L) | 550 |
| Feeding height (mm) | 1540 |
| Hydraulic system type | open |
| Distribution valve form | S valve |
| Cylinder bore × stroke (mm) | Φ150×1650 |
| Concrete bore diameter × stroke (mm) | Φ230×1650 |
| Hydraulic oil cooling | Air cooled |
| Recommended slump (cm) | 12~23 |
| Maximum aggregate size (mm) | 40 |
1. Concrete boom pump trucks are combined with high reliability, economy, safety and durability.
Feature of concrete pump truck:
2. It has reasonable collocations for the chassis system, power system, control system, hydraulic system, mixing system and pumping system.
3. Chassis adopts DongFeng, Sinotruck, Shacman, ISUZU, HOWO brand, strong carrying capacity, good dynamic performance and low fuel consumption.
4. Emission system is up to Euro VI standard, low noise and easy to repair.
5. It has the characteristics of flexible foldable arms, little space occupying support legs, easily movable chassis.
6. Equipped with H/L pressure switch, high outlet pressure, the whole concrete boom pump truck can meet the needs of long distance delivery.
Q1:Which country do you export to?
Asia:India,Philippines,Thailand,Burma,Vietnam,Bangladesh,Kazakhstan,Turkmenistan,etc.
Middle east:Saudi Arabia,UAE,Jordan,Oman,Pakistan,etc.
Europe:Russia,Ukraine,Belarus,Bulgaria,etc.
Africa:South Africa,Kenya,Congo,Ethiopia,Nigeria,Ghana,Algeria,Senegal,Tunisia,etc.
South America:Brazil,Peru,Chile,Cuba,Venezuela,Mexico,etc.
Oceania:Papua New Guinea,Australia,etc.
Q2:What is the proportion of your products export?
75% of our products are exported to all over the world.
Q3:What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers.TT,L/C,D/P,depending on the cooperation time,country and contract value.
Q4:What kind of logistic service do you supply?
FOB,CIF,DAP,ETC.
